Auto Lensmeter

Product Description

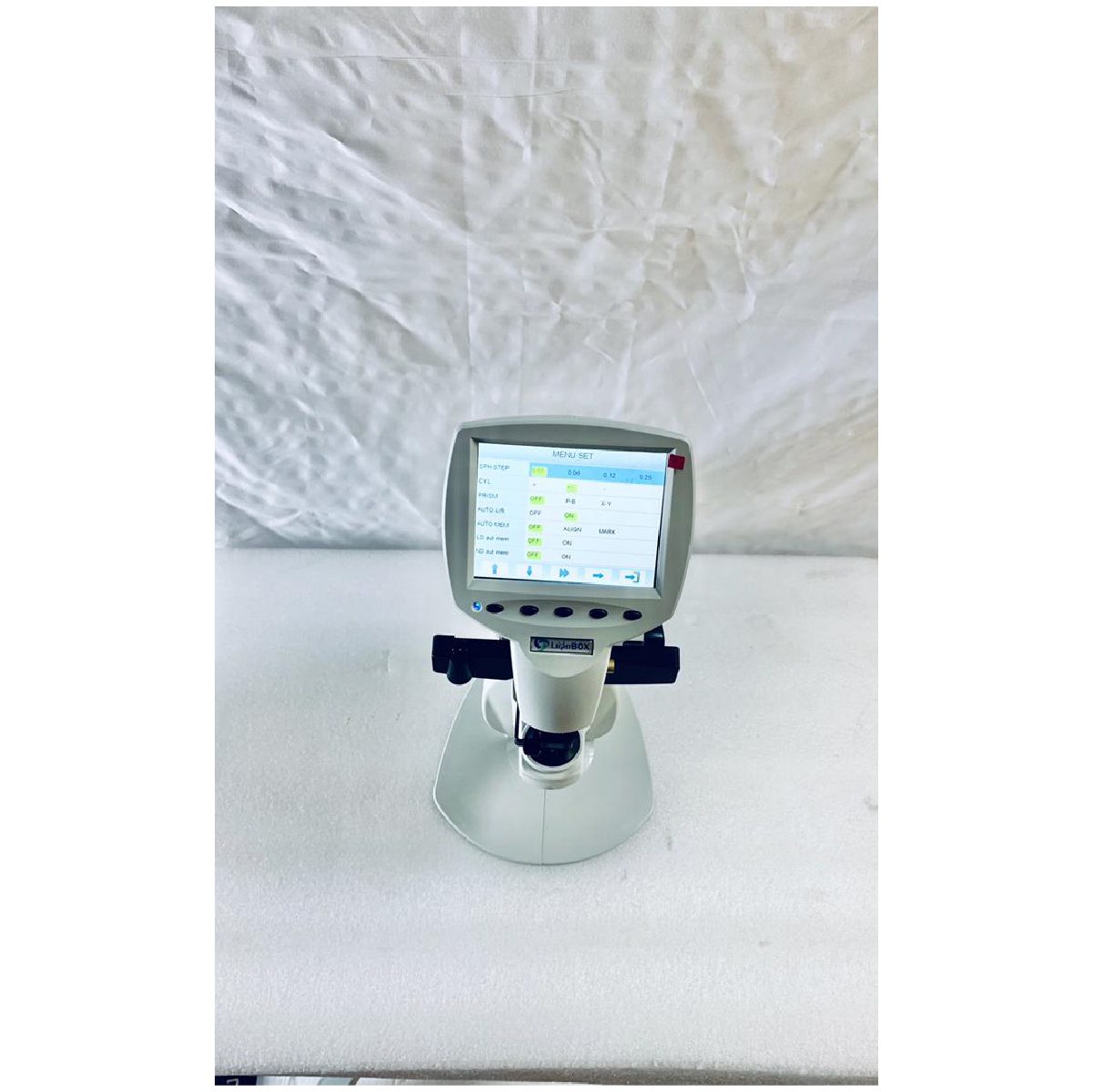

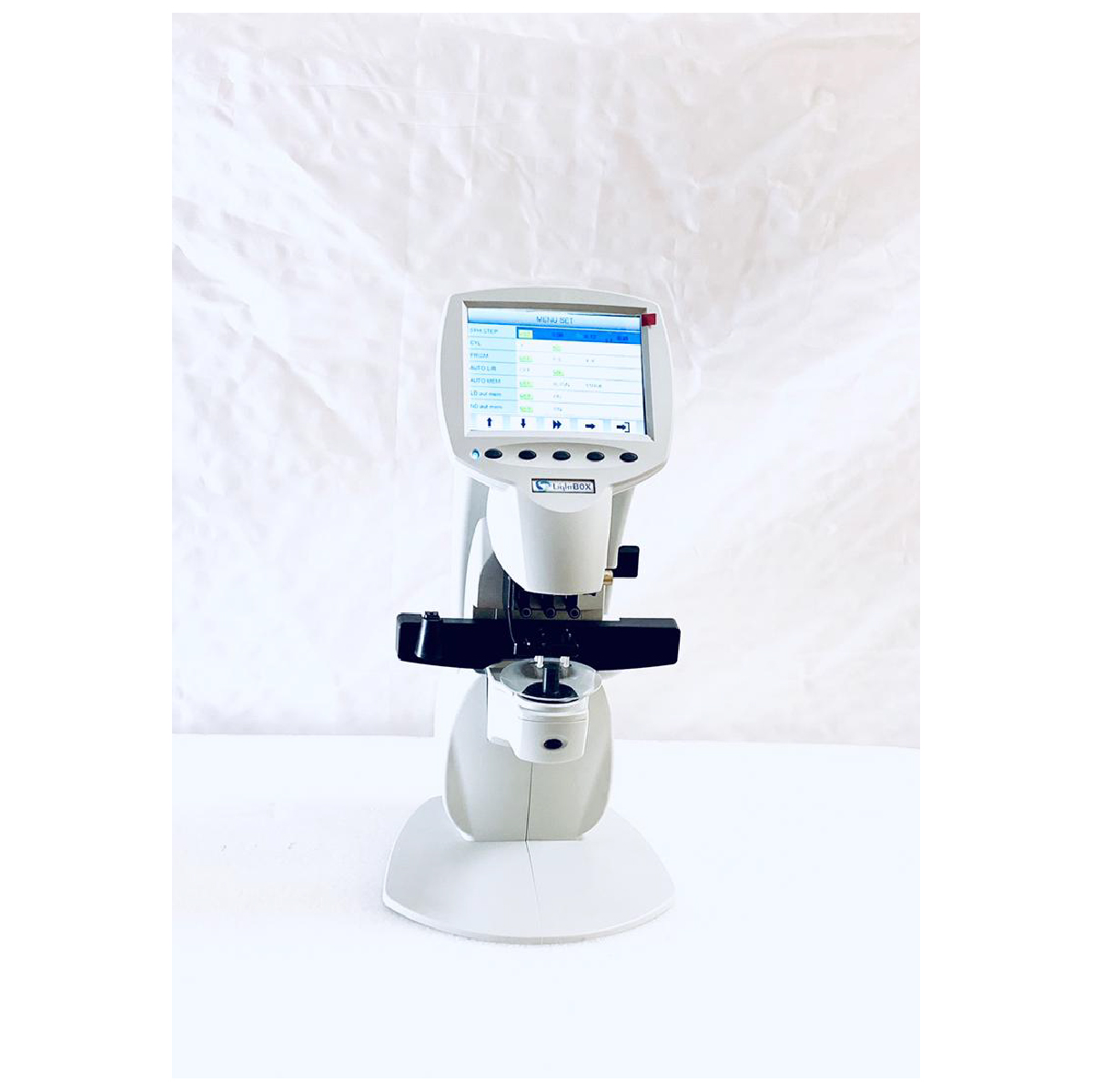

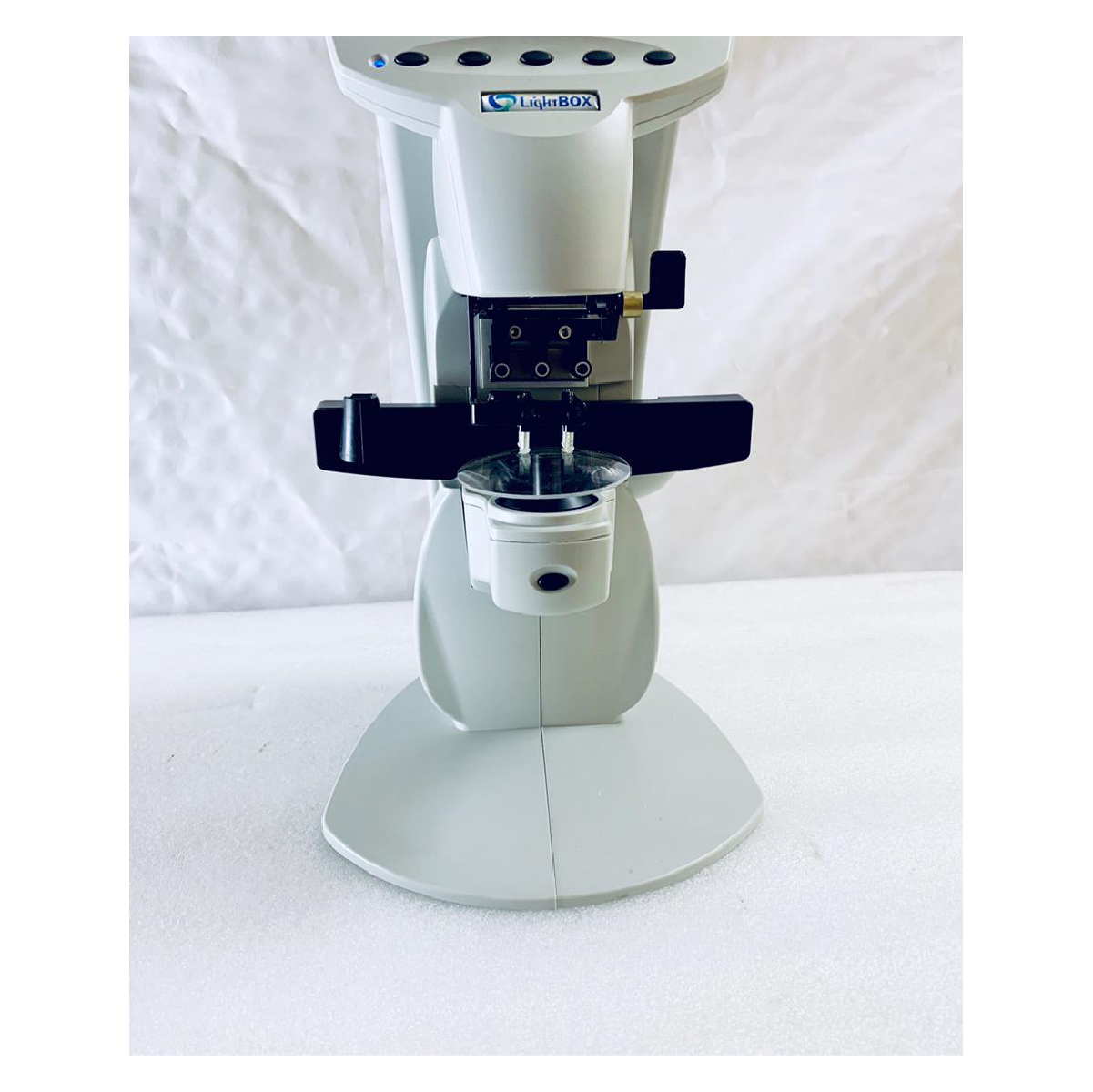

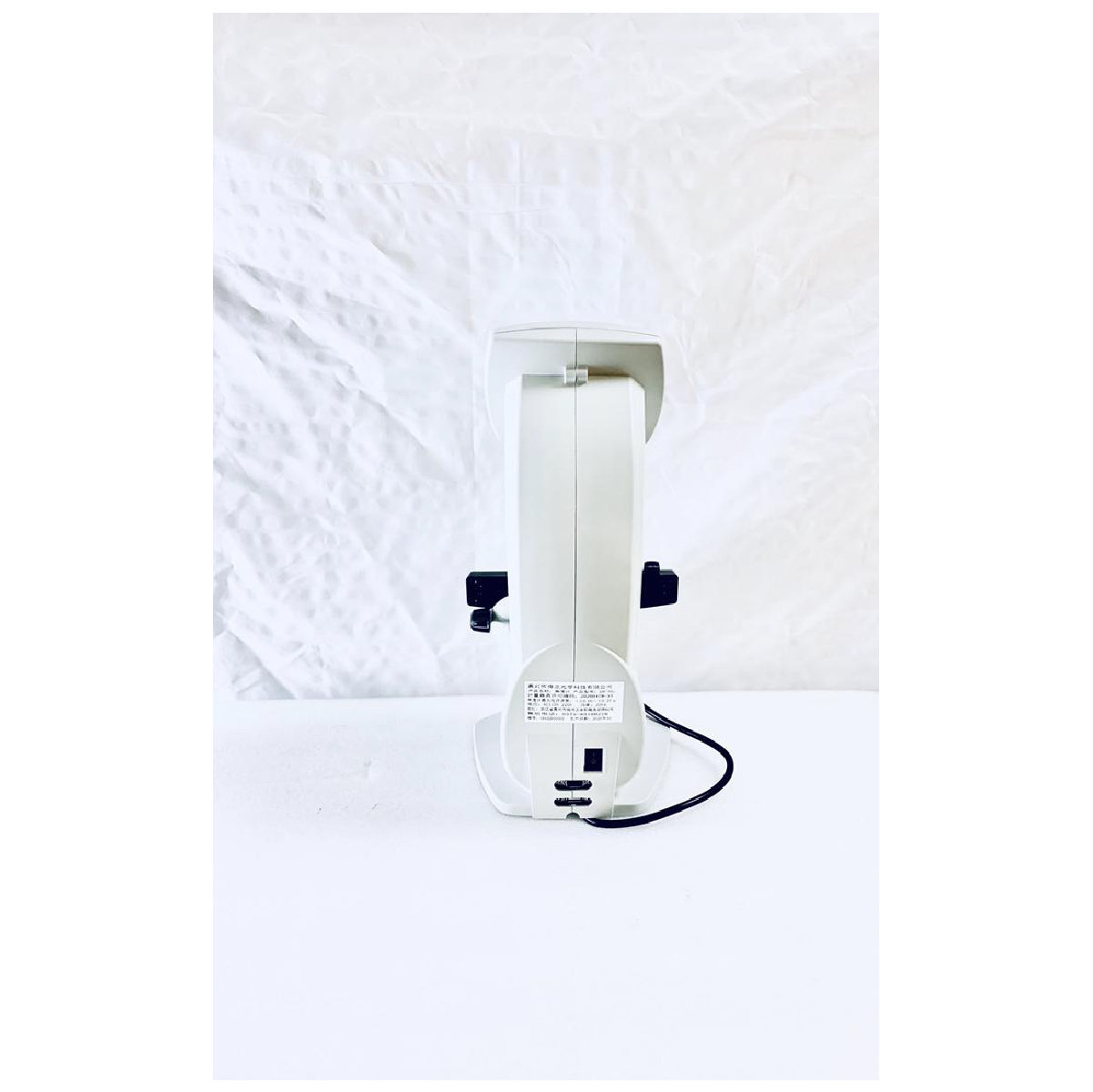

Optical Equipment Auto Lensmeter

Model: lightbox

Auto Lensmeter is our latest model. It has functions of PD, UV, printer and blue light measurement. It can measure colorful and dark lenses at fast speed and in high accuracy.

  • autoLensmeter | Lightbox ophthalmic equipment
  • autoLensmeter | Lightbox ophthalmic equipment
  • autoLensmeter | Lightbox ophthalmic equipment
  • autoLensmeter | Lightbox ophthalmic equipment
  • autoLensmeter | Lightbox ophthalmic equipment
  • autoLensmeter | Lightbox ophthalmic equipment
  • autoLensmeter | Lightbox ophthalmic equipment
  • autoLensmeter | Lightbox ophthalmic equipment
  • autoLensmeter | Lightbox ophthalmic equipment
  • autoLensmeter | Lightbox ophthalmic equipment
  • autoLensmeter | Lightbox ophthalmic equipment

Technical Specifications

Measurement Range
Sphere -35.00D~+35.00D (0.01D, 0.06D, 0.12D, 0.25D steps)
Cylinder 0.00D~±10D (0.01D, 0.06D, 0.12D, 0.25D steps)
Axis 0°~180° (1° step)
ADD 0.00D~+10D (0.01D, 0.06D, 0.12D, 0.25D steps)
Prism Degree 0.00~15.00Δ, 0.01D step
Measurement Modes
Cylinder +,+/-,-
Prism X-Y, P-B
Contact Lens Soft/Hard
Measurement Modes Single/Progressive/Automatic Recognition
Diameter of Lens Φ18~Φ110mm
Measurement Speed 0.2s
Specifications
PD 40~90mm, 0.5mm step
Display 5.6” color LCD screen
Printer Thermal Printer
Power Supply AC100(±10%) ~240(±10%)V, 50/60Hz
Power 40VA
Dimension 200* 200* 400mm(H*W*D)
Net Weight 3.6kgs
Auto lensmeter | ophthalmic Equipment

Auto Lensmeter
Visual acuity chart | ophthalmic equipment

Visual Acuity Chart
instrument table | ophthalmic equipment

Instrument Table
Snellen Visual Acuity Chart | ophthalmic equipment

Snellen Visual Acuity Chart
Automated Visual Acuity Chart | ophthalmic equipment

Automated Visual Acuity Chart

Features

1. 5.6” sensitive LCD display screen;
2. All operations can be finished by key mode;
3. Advanced Hartmann sensor technology with 108 measurement points;
4. Adopted green measurement light beam allows to measure different kinds of dark lenses;
5. Point is made by nano materials, which is no damage to the Lenses;
6. Progressive measurement to improve accuracy and speed of near and far vision measurements;
7. Auto recognition of single and progressive lens;
8. High speed UV measurement, blue light measurement and built in Thermal Printer.
